HG5系列絲網除沫器規格型號 |
|
HG5-1404-81
HG5-1405-81
HG5-1406-81 |
|
|
|
|
|
HG5絲網除沫器型式、結構與安裝說明
A、
絲網除沫器型式
絲網除沫器型式有：升氣管型、縮徑型、全徑型

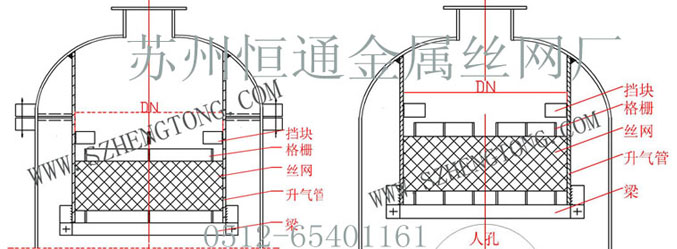

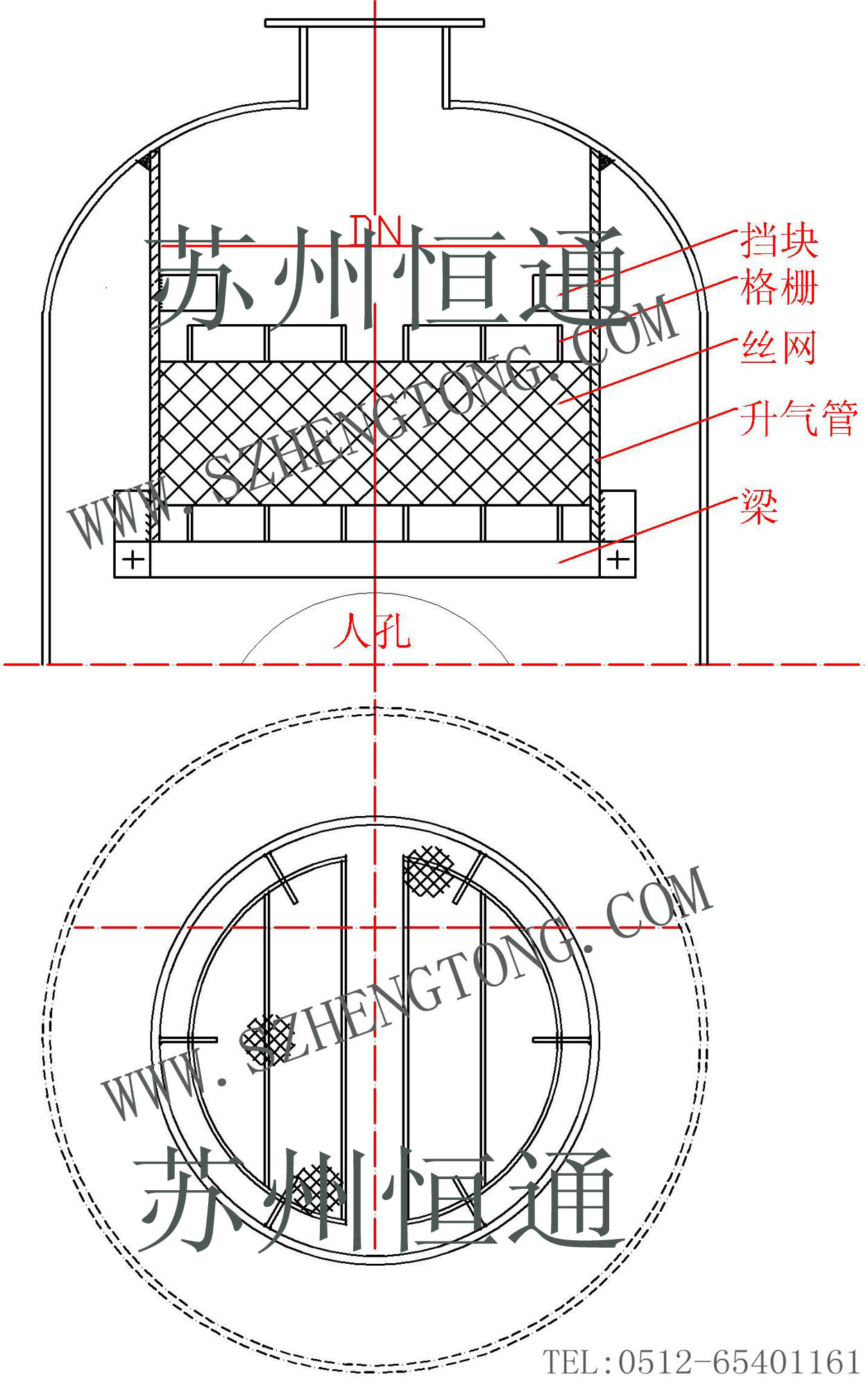

1、升氣管型（HG5-1404-81）
絲網除沫器的網塊安裝在設備頂部升氣管下端。
2、

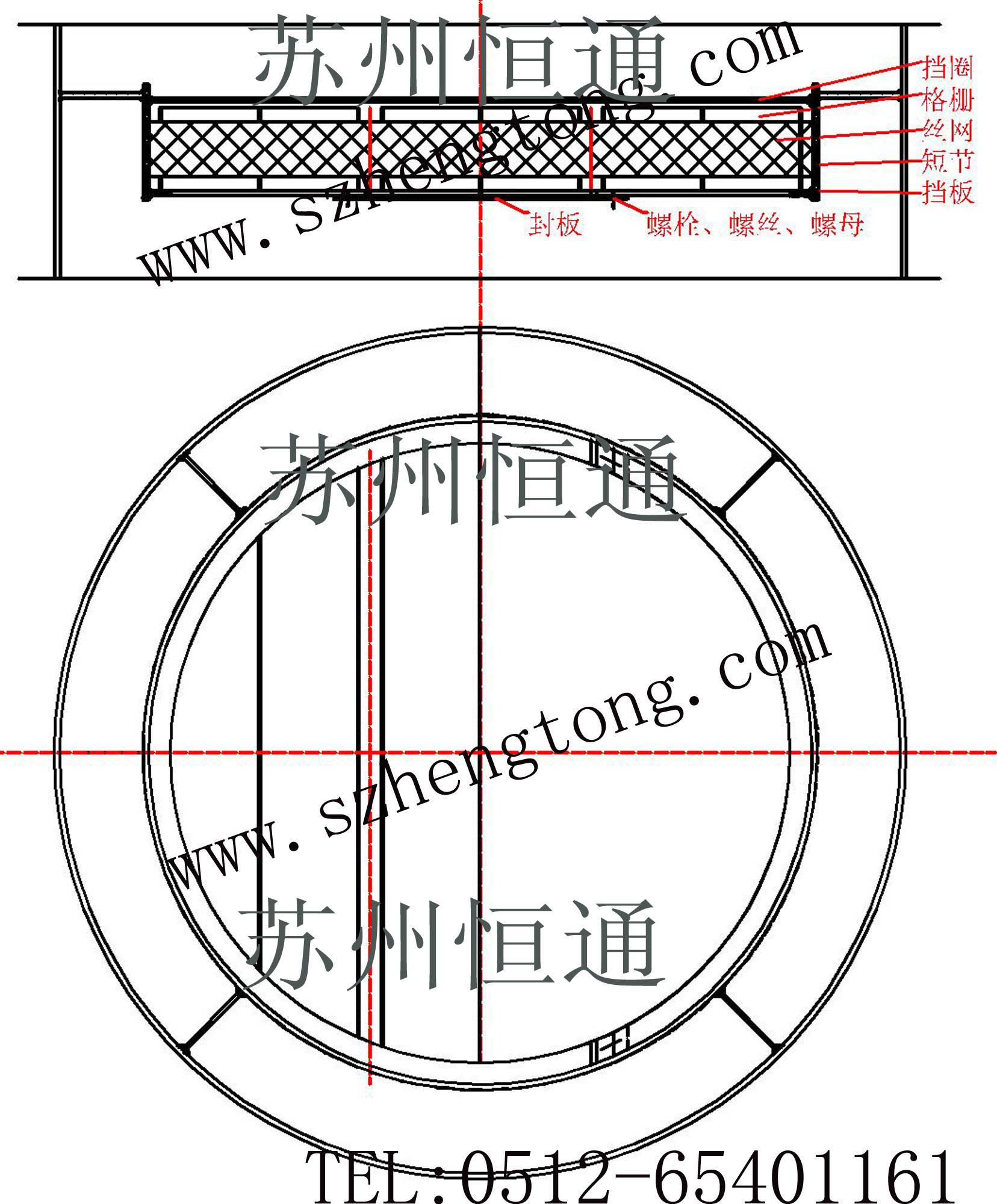

縮徑型（HG5-1405-81）
當設計的絲網除沫器的網塊直徑小于設備筒體直徑時，需要另外加一短節安裝網塊。
3、
全徑型（HG6-1405-81）
設計的絲網除沫器的網塊直徑等于設備筒體直徑時，網塊直接安裝在筒體內。
B、
網塊結構
絲網除沫器的網塊結構有兩種：盤形網塊和條形網塊。
1、盤形網塊
用絲網卷制成所需直徑的網塊，網塊的厚度等于絲網的寬度規格，這種網塊充分地利用了絲網材料，沒有邊角預料損耗。但卷制時要求各圈必須卷得密疏一致，不然易產生短路，影響除沫效果。盤形網塊不宜用手工制作，應用機械卷制，以保證卷制質量。盤形網塊僅適用于較小直徑的絲網除沫器，本標準產品用于Dg300～600㎜
2、條形網塊

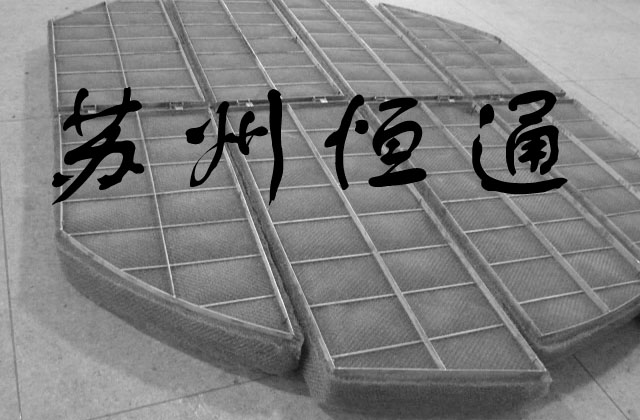

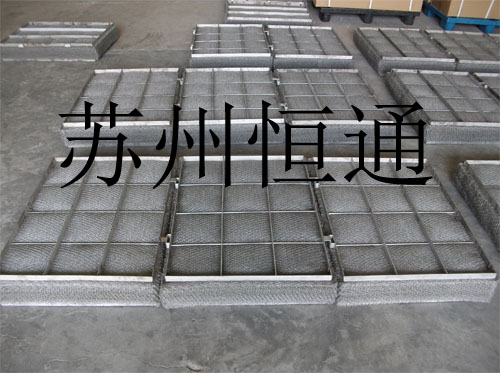

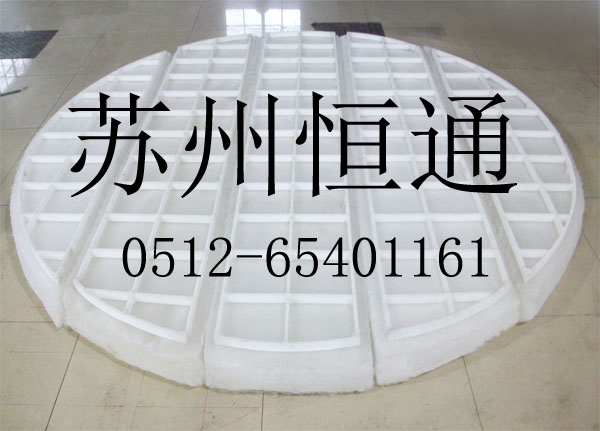

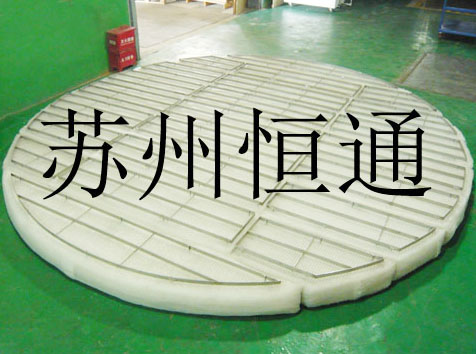

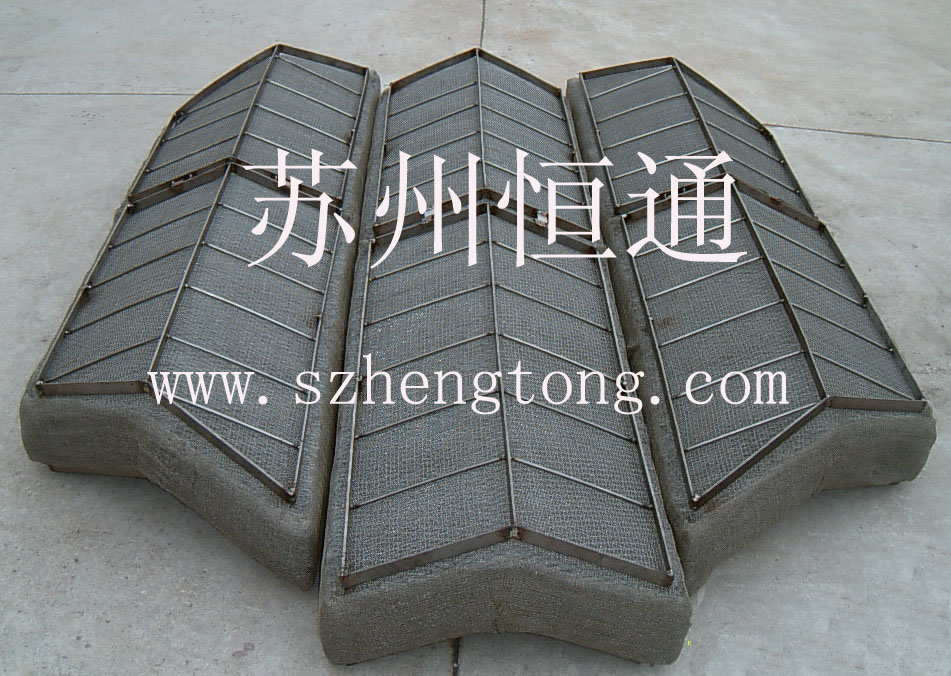

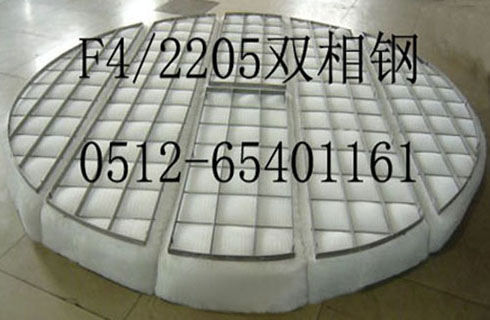

條形網塊是目前使用最普遍的結構。它是用絲網一層層地平鋪，鋪至規定層數，再在網層上面與下面各放一塊格柵，然后將網層壓至所需厚度尺寸，用定矩桿與鉤使其成為一整塊。條形網塊的形狀與尺寸，隨公稱直徑與分塊數量而變化。
3.、網塊安裝

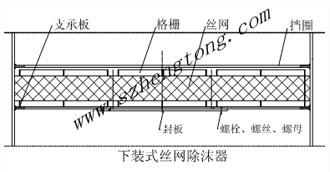

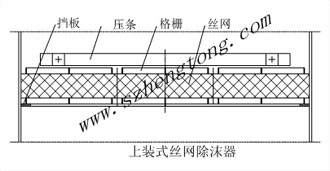

網塊安裝時，有從上往下裝與由下往上裝兩種情況，因此，絲網除沫器有上裝式與下裝式兩種結構。當人孔位置開設在絲網除沫器的上面，或無人孔而有設備法蘭時，選用上裝式絲網除沫器；人孔位置開設在絲網除沫器的下面，選用下裝式絲網除沫器。 |
|
HG5系列絲網除沫器規格型號
與標準圖號 |
|
（一）升氣管型絲網除沫器 |
|
|
|
1、升氣管型（A型）Dg300~600 |
|
公稱直徑Dg(mm) |
H (mm) |
標準圖號 |
|
300 |
100 |
HG5-1404-81-1 |
|
150 |
HG5-1404-81-7 |
|
400 |
100 |
HG5-1404-81-2 |
|
150 |
HG5-1404-81-8 |
|
500 |
100 |
HG5-1404-81-3 |
|
150 |
HG5-1404-81-9 |
|
600 |
100 |
HG5-1404-81-4 |
|
150 |
HG5-1404-81-10 |
|
|
2、升氣管型（B型）Dg500~600 |
|
公稱直徑Dg(mm) |
H (mm) |
標準圖號 |
|
500 |
100 |
HG5-1404-81-5 |
|
150 |
HG5-1404-81-11 |
|
600 |
100 |
HG5-1404-81-6 |
|
150 |
HG5-1404-81-12 |
|
|
(二)縮徑型絲網除沫器 |
|
 |
|

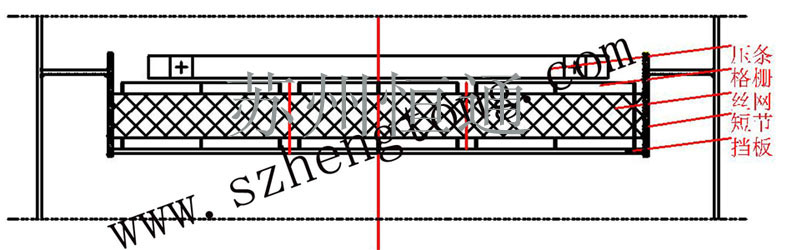

縮徑型上裝式
|
|
|
|
 |
|

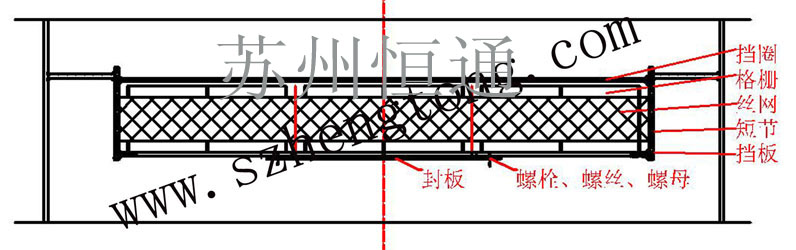

縮徑型下裝式 |
|
1、縮徑型上裝式Dg700~1600 |
|
公稱直徑Dg(mm) |
H (mm) |
標準圖號 |
|
700 |
100 |
HG5-1405-81-1 |
|
150 |
HG5-1405-81-15 |
|
800 |
100 |
HG5-1405-81-2 |
|
150 |
HG5-1405-81-16 |
|
900 |
100 |
HG5-1405-81-3 |
|
150 |
HG5-1405-81-17 |
|
1000 |
100 |
HG5-1405-81-4 |
|
150 |
HG5-1405-81-18 |
|
1200 |
100 |
HG5-1405-81-5 |
|
150 |
HG5-1405-81-19 |
|
1400 |
100 |
HG5-1405-81-6 |
|
150 |
HG5-1405-81-20 |
|
1600 |
100 |
HG5-1405-81-7 |
|
150 |
HG5-1405-81-21 |
|
|
2、縮徑型下裝式Dg700~1600 |
|
公稱直徑Dg(mm) |
H (mm) |
標準圖號 |
|
700 |
100 |
HG5-1405-81-8 |
|
150 |
HG5-1405-81-22 |
|
800 |
100 |
HG5-1405-81-9 |
|
150 |
HG5-1405-81-23 |
|
900 |
100 |
HG5-1405-81-10 |
|
150 |
HG5-1405-81-24 |
|
1000 |
100 |
HG5-1405-81-11 |
|
150 |
HG5-1405-81-25 |
|
1200 |
100 |
HG5-1405-81-12 |
|
150 |
HG5-1405-81-26 |
|
1400 |
100 |
HG5-1405-81-13 |
|
150 |
HG5-1405-81-27 |
|
1600 |
100 |
HG5-1405-81-14 |
|
150 |
HG5-1405-81-28 |
|
|
(三)全徑型絲網除沫器 |
 |

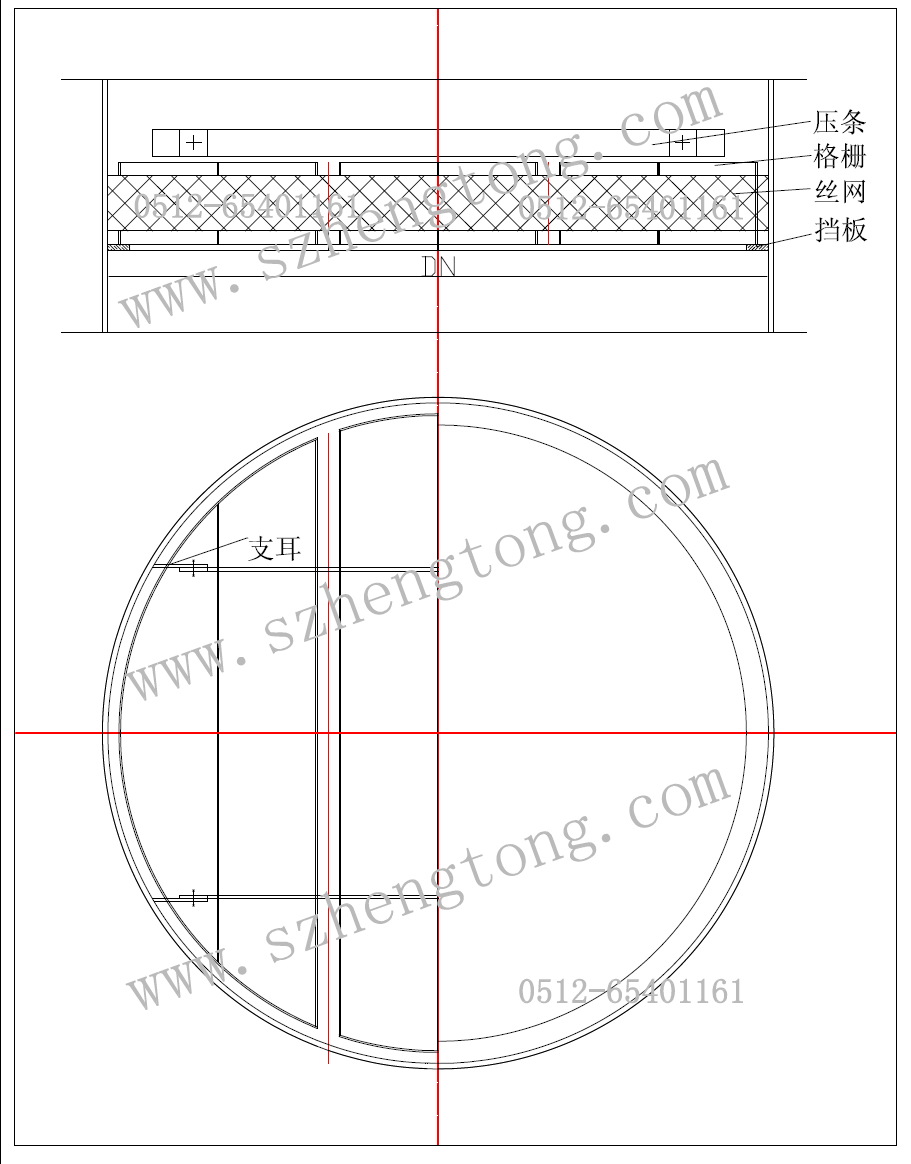

| 全徑型上裝式絲網除沫器： |
| |
|
1、全徑型上裝式Dg300~600 |
|
公稱直徑Dg(mm) |
H (mm) |
標準圖號 |
|
300 |
100 |
HG5-1406-81-1 |
|
150 |
HG5-1406-81-49 |
|
400 |
100 |
HG5-1406-81-2 |
|
150 |
HG5-1406-81-50 |
|
500 |
100 |
HG5-1406-81-3 |
|
150 |
HG5-1406-81-51 |
|
600 |
100 |
HG5-1406-81-4 |
|
150 |
HG5-1406-81-52 |
|
|
2、全徑型上裝式Dg700~1600 |
|
公稱直徑Dg(mm) |
H (mm) |
標準圖號 |
|
700 |
100 |
HG5-1406-81-5 |
|
150 |
HG5-1406-81-53 |
|
800 |
100 |
HG5-1406-81-6 |
|
150 |
HG5-1406-81-54 |
|
900 |
100 |
HG5-1406-81-7 |
|
150 |
HG5-1406-81-55 |
|
1000 |
100 |
HG5-1406-81-8 |
|
150 |
HG5-1406-81-56 |
|
1200 |
100 |
HG5-1406-81-9 |
|
150 |
HG5-1406-81-57 |
|
1400 |
100 |
HG5-1406-81-10 |
|
150 |
HG5-1406-81-58 |
|
1600 |
100 |
HG5-1406-81-11 |
|
150 |
HG5-1406-81-59 |
|
|
3、全徑型上裝式Dg1800~3200 |
|
公稱直徑Dg(mm |
H (mm) |
標準圖號 |
|
1800 |
100 |
HG5-1406-81-12 |
|
150 |
HG5-1406-81-60 |
|
2000 |
100 |
HG5-1406-81-13 |
|
150 |
HG5-1406-81-61 |
|
2200 |
100 |
HG5-1406-81-14 |
|
150 |
HG5-1406-81-62 |
|
2400 |
100 |
HG5-1406-81-15 |
|
150 |
HG5-1406-81-63 |
|
2600 |
100 |
HG5-1406-81-16 |
|
150 |
HG5-1406-81-64 |
|
2800 |
100 |
HG5-1406-81-17 |
|
150 |
HG5-1406-81-65 |
|
3000 |
100 |
HG5-1406-81-18 |
|
150 |
HG5-1406-81-66 |
|
3200 |
100 |
HG5-1406-81-19 |
|
150 |
HG5-1406-81-67 |
|
|
4、全徑型上裝式Dg1800~3200 |
|
公稱直徑Dg(mm |
H (mm) |
標準圖號 |
|
3400 |
100 |
HG5-1406-81-20 |
|
150 |
HG5-1406-81-68 |
|
3600 |
100 |
HG5-1406-81-21 |
|
150 |
HG5-1406-81-69 |
|
3800 |
100 |
HG5-1406-81-22 |
|
150 |
HG5-1406-81-70 |
|
4000 |
100 |
HG5-1406-81-23 |
|
150 |
HG5-1406-81-71 |
|
4200 |
100 |
HG5-1406-81-24 |
|
150 |
HG5-1406-81-72 |
|
4300 |
100 |
HG5-1406-81-25 |
|
150 |
HG5-1406-81-73 |
|
4600 |
100 |
HG5-1406-81-26 |
|
150 |
HG5-1406-81-74 |
|
5800 |
100 |
HG5-1406-81-27 |
|
150 |
HG5-1406-81-75 |
|
|

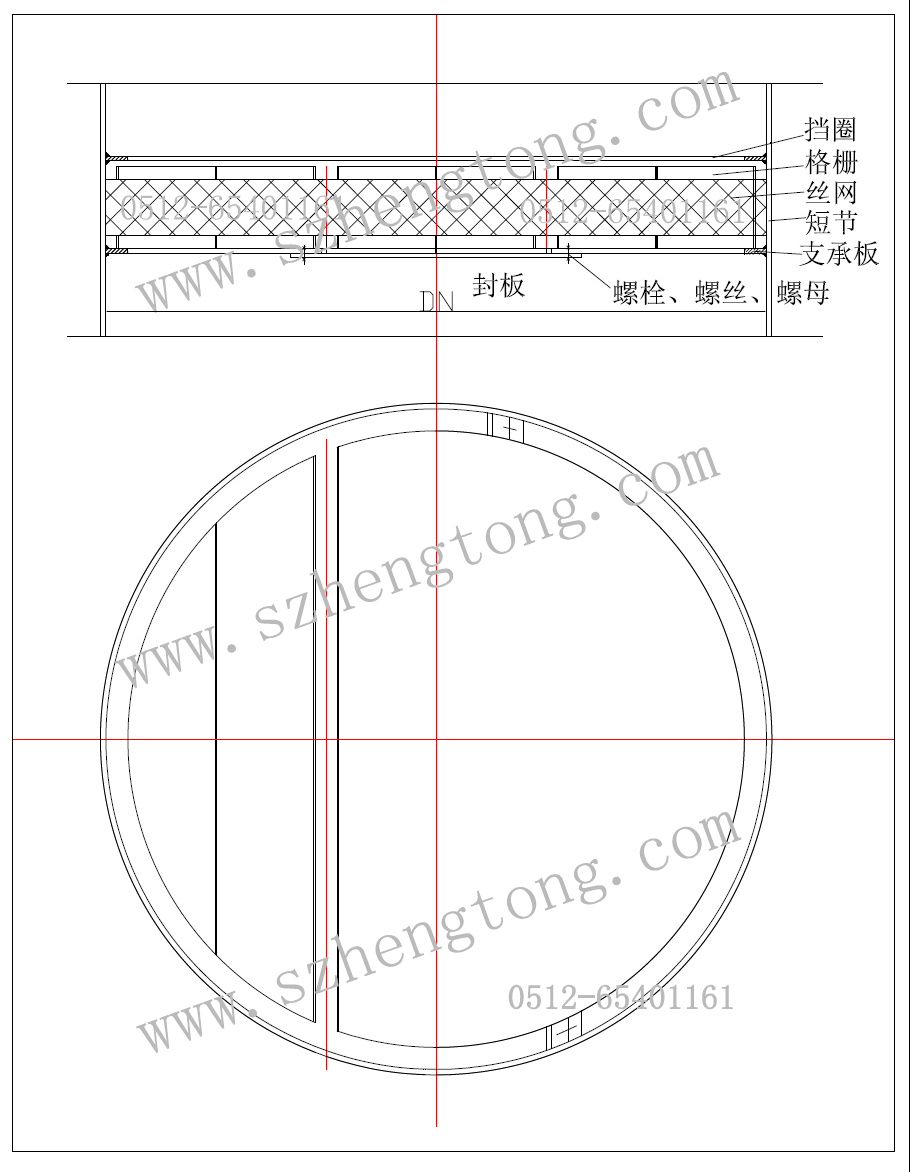

全徑型下裝式絲網除沫器： |
|
 |
| |
|
1、全徑型下裝式Dg1000~1600 |
|
公稱直徑Dg(mm |
H (mm) |
標準圖號 |
|
1000 |
100 |
HG5-1406-81-30 |
|
150 |
HG5-1406-81-78 |
|
1200 |
100 |
HG5-1406-81-31 |
|
150 |
HG5-1406-81-79 |
|
1400 |
100 |
HG5-1406-81-32 |
|
150 |
HG5-1406-81-80 |
|
1600 |
100 |
HG5-1406-81-33 |
|
150 |
HG5-1406-81-81 |
|
|
|
|
2、全徑型下裝式Dg1800~3200 |
|
公稱直徑Dg(mm |
H (mm) |
標準圖號 |
|
1800 |
100 |
HG5-1406-81-34 |
|
150 |
HG5-1406-81-82 |
|
2000 |
100 |
HG5-1406-81-35 |
|
150 |
HG5-1406-81-83 |
|
2200 |
100 |
HG5-1406-81-36 |
|
150 |
HG5-1406-81-84 |
|
2400 |
100 |
HG5-1406-81-37 |
|
150 |
HG5-1406-81-85 |
|
2600 |
100 |
HG5-1406-81-38 |
|
150 |
HG5-1406-81-86 |
|
2800 |
100 |
HG5-1406-81-39 |
|
150 |
HG5-1406-81-87 |
|
3000 |
100 |
HG5-1406-81-40 |
|
150 |
HG5-1406-81-88 |
|
3200 |
100 |
HG5-1406-81-41 |
|
150 |
HG5-1406-81-89 |
|
|
|
|
